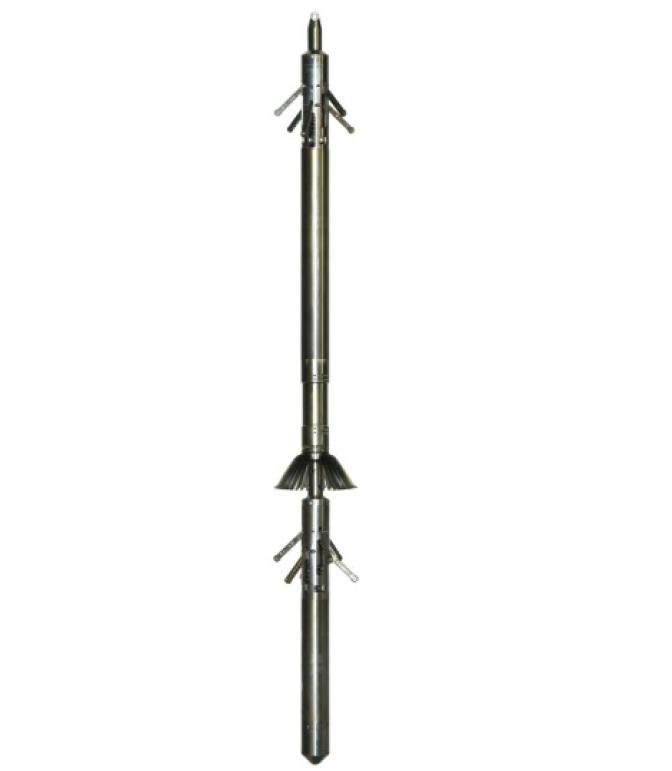

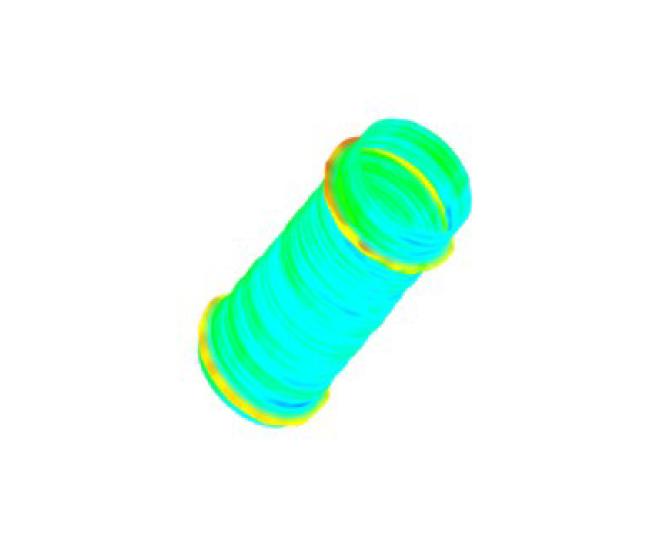

The multifinger imaging tool allows to record the change in internal diameter of the tubing and/or casing reproducing a to 360 ° 3D image of the registered profile

• Corrosion assessment
• Casing wear
• Casing deformation
• Scale evaluation
• Location of holes, cracks & splits

Specifications

• Pressure Range: 15000psi (105MPa)
• Temperature Range: 350F (175C)



Tool Diameter 1-11/16"

• Arms: 24"
• Measuring Range: 2.2-7" (55-145mm)
• Measuring Accuracy: dia.05" (1.5mm)
• Deviation / Azimuth: No



Tool Diameter:2-7/8"

• Arms: 40"
• Measuring Range: 3.2-8.3" (80-210mm)
• Measuring Accuracy: .dia .04" (1mm)
• Deviation / Azimuth: Yes



Tool Diameter: 3-1/2"

• Arms: 56"
• Measuring Range: 4-10" (100-245mm)
• Measuring Accuracy: dia .04" (1mm)
• Deviation / Azimuth:Yes
